High speed rectangular tin can production line

Name: High speed rectangular tin can production line
Brand: Sunnran
Price: 150 USD

Wholesale High speed rectangular tin can production line from china suppliers

Type : Packaging Line

Applicable Industries : Food & Beverage Factory, Paint

Showroom Location : None

Condition : New

Application : Food, Chemical

Packaging Type : Vacuum packing , wooden case

Packaging Material : Metal, Tinplate

Automatic Grade : Fully-automation

Driven Type : PLC or Advanced Motion control system

Voltage : 380V

Place of Origin : Guangdong, China

Brand Name : Sunnran

Dimension(L*W*H) : 78300x1700x2450mm

Weight : 15000 KG

Warranty : 1 Year

Key Selling Points : High quality with Competitive Price

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motion control system

Applicable range : Rectangular can

Output : Max.80 CPM

Can size : 1-5L

Air pressure : Not lower than 0.6Mpa

Connection height : 1000±10mm

Price : $150,000.00 - $320,000.00/Pieces

Contact Now

Products Description

Rectangular can making line

High speed rectangular tin can production line

Two types of rectangular line can be selected by customer to meet their speed requirement , ZD-60S, ZD-S. ZD-60S can reach stable speed: 80CPM. Ultrasonic sensor equipped makes the can orientation more accurately. The adopts of dual expanding technique grants the machine better synchronism and faster speed. Integrated single head, single mold flanging and seaming can avoid can deformation effectively. The successive rotary lid delivery structure can feed the lids stably & quickly.

Details of the machine

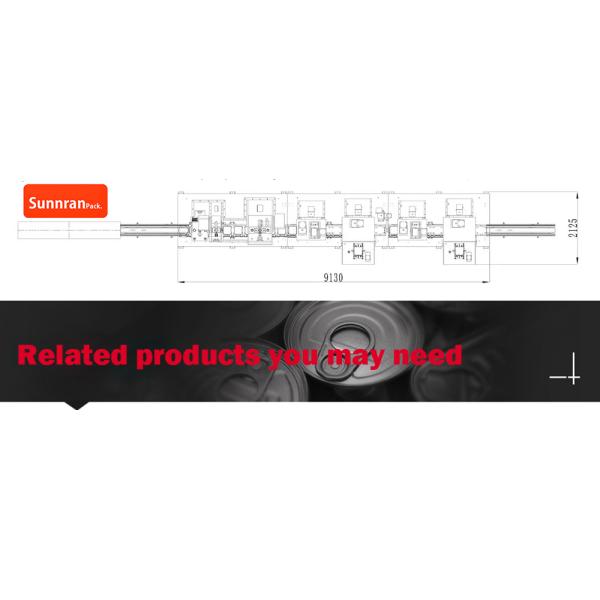

Layout

Welding line

Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.

Automatic welder
Wire speed	Can diameter	Can height	Can material	Power capacity
6-24m/Min	99-180mm	70-330	Tinplate,Ni-plate,SS	26Kw
Internal & external coating machine
Coating speed	Can diameter	Coating width	Power Consumption	Power source
10-35m/min	52-300	10-14	0.6Kwh	220V
Induction oven
Conveying speed	Heater Qty.	Power	Cooling water	Air source
9-30m/min	3 x 2m/Heater	380V , 50Hz	>30L/min>400Kpa/cm2<20℃
